- 15A BMS 500W
- 20A BMS 750W
- 30A BMS 1000W
Color

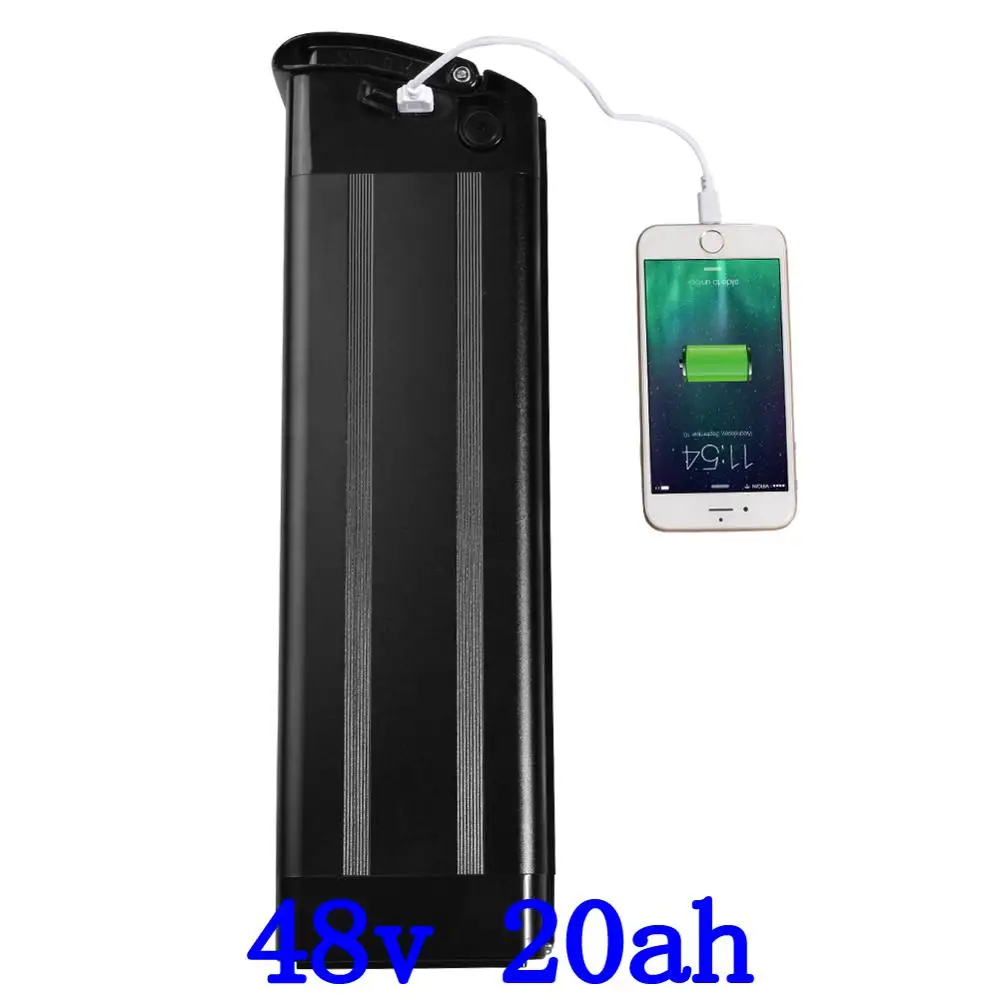

48V electric bike battery 48V 20AH 1000W lithium ion battery use LG
cell 48V ebike with USB port for 48V 500W 750W 1000W ebike motor
Product included:
1.48v 20.4ah Lithium Battery with 30A BMS board build in.
2.54.6V 2A Charger (With EU/US/UK/AU AC Charger plug you can choose )
Electric Bike Battery Specifications:
Battery Model:48V 20.4Ah
Nominal Voltage: 48V
Nominal Capacity: 20.4Ah
Cell Specification :3.7V 3400mah LG 18650 Cell
Cell OverCharge Protection Voltage:4.2V/Cell
Cell Overdischarge Protection Voltage:2.8V/cell
Cell Source Resistance (mΩ) :about 40mΩ
Composed Type: 13Series 6Paralles 13S6P
BMS:15 Amp continuous 50±10Amp maximum
Fit Motor Power : 48V 250W 350W 500W 750W 1000W
Discharge Cutoff Voltage (V) :39+-1V
Charge Cutoff Voltage (V) :54.6V
Rated Discharge Current (A): 30A
Maximum peak discharge current (A):90A
Maximum Continuous Discharge Current (A) :30A
Charger mode:CC/CV(Constant Current Constant Voltage)
Standard Charge Current (A) :2A
Charge Time under Standard Charge Current :10h
Max Fast Charge Current (A):5A
Charge Time under Fast Charge Current:4h
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 390*110*76mm
Battery Weight: 4.5kg
Cycle life: ≥80% capacity after 800 cycles.
Lithium Ion Charger Specification:
1. AC Input Voltage: 110v -220v.
2. Charge Voltage: 54.6Volts.
3. Charge Current: 2Amps.
4. AC Charger Plug: EU/US/UK/AU you can choose
Parameter Information List
| Battery Model | 48v 20.4ah |
| Nominal Voltage (V) | 48v |
| Nominal Capacity (AH) | 20.4ah |
| Source Resistance (mΩ) | about 40 |
| Cell Specification | 3.7V 3400mah |
| Cell Combination | 6-parallel 13-series |
| Cell Type | 3.7v 3400mah LG 18650 |
| Cell Quantity (parallel*series) | 78pcs |
| Discharge Cutoff Voltage (V) | 30+/- 1V |
| Charge Cutoff Voltage (V) | 54.6v |
| Rated Discharge Current (A) | 30A |
| instantaneous Maximum Discharge Current (A) | 90A |
| Maximum Continuous Discharge Current (A) | 30A |
| Maximum Continuous Charge Current (A) | 5A |
| Charge Mode | CC-CV |
| Standard Charge Current (A) | 2A |
| Charge Time under Standard Charge Current | 10hours |
| Fast Charge Current (A) | 5A |
| Charge Time under Fast Charge Current | 4hours |
| Charge Temperature Range | -20-55°C |
| Cell Size (L*W*T ) | 390*110*76mm |
| Battery Weight | About 4.5KG |
| Battery Power | 250W 350W 500W 750W 1000W |
| Feature: 1. Cells - A grade cells to make sure batteries in high and full capacity 2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload 3. Compose Type : Injection Technology to make battery more stable. 4. Certifications : CE,UL,FCC, RoHS, ISO9001 5. Long life cycle, No memory, environment friendly.
| |
Lithium battery features:
1.High energy density, Fast charging
2. Light weight, small size Pollution-free, environment friendly
3. Long cycle life; It extends its cycle life up to 600-800 cycles
4. With short-circuit production function, safe and reliable
5. Large overcharge tolerance and safe performance the battery life is more longer
6. Simplifying battery management system (BMS such as overcharge/ discharge,over current, short circuit,
over temperature and balancing) and Battery Charger
Precautions:
1.Do not reverse the position and negative terminals.
2.Do not connect the battery electrodes to an electrical outlet.
3.Do not discard the battery in fire or a heater.
4.Does not use or leave the battery near a heat source as fire or heater
5.Do not short circuit, over-charge or over-discharge the battery pack
6.Do not strike, trample or throw the battery.
7.Do not directly solder the battery and pierce the battery with a nail or other sharp objects
8.Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
9.Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
10.Use the battery charger specifically for that purpose when recharging. Use a constant current, constant voltage
(CC/CV) lithium-ion (Li+)batterycharge controller
11.Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.
12.If shelve a long time suggested that the battery need for regular recharging (even if not use), must charge and
discharge for three months one time;
Payment:
1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment process or escrow
2) Payment must be made within 3 days of order.
3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be
completed with in 3 days.
Delivery Time:
1. Battery is a special product, all batteries need several cycle tests before delivery, All e-bike batteries will be produced
once confirm order.so production and test time need about 3-5 days
2. Delivery time depends on destination and other factors,if you have not receive the ebike battery more than 30 days
please contact with us.
3. Electric bike batteries will be Free Customs Taxes and VAT Fee to USA,Australia,Malaysia and EU countries, but the
several non-EU countries will not whole free, others countries will need to pay them by customers.
Delivery Method:
Notice:If your address is on an island, please contact with us before placing an order, thanks!
For European buyers:
For Switzerland, Norway buyers
All parcels usually are shipped by UPS shipping,it will air to France first,then to the destination countries via DPD or UPS.
We will pay the tax in the France Custom .you have to pay the second tax fee in your custom .
it usually take 10-20 days after we send.
For American Canada buyers:
We send by FedEx or UPS,Sometimes we send UPS,and sometimes we send Fedex, we choose the faster one.
you don't need to pay customs fee.
The delivery time is usually 8-15 days after we send.
ForJapan,Korea,Singapore,NewZealand,Malaysia,Thailand,Vietnam,Australia buyers buyers
We send by special shipping method ,The delivery time is usually 7-15 days after dispatch.
For Russian / Belarus buyers:
We send by CDEK. The delivery time is usually 15-30 days after dispatch.
Guarantee
We provide 1 year warranty for all electric bike batteries.
Any battery with quality problem in one month we can return the money after you provide the proof.
After one month we can send BMS or cells to you for repairing, or you can send it back to repair as well.
All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.
